Water Desalinators Tecnicomar
+7 (812)240-44-64, +7 (812)240-44-65
Technical Data
| Model |
Production by hour (litres/gallons) |
Production by day (fitres/gallons) |
Frequency (Hz) Installed Power (KW) |
Max Dimensions (cm) |
Weight (Kg) |
||
| SAILOR COMPACT | |||||||
| A | B | C | |||||
| SAILOR COMPACT 200 | 13 / 9,2 | 840 / 220 | 230V c.a.- 50 Hz monofase* - 1.5 KW | 75 | 52 | 36 | 49 |
| SAILOR COMPACT 400 | 70 / 18,5 | 1,680 / 444 | 230 V c.a. - 50 Hz monofase*- 1.5 KW | 75 | 52 | 36 | 52 |

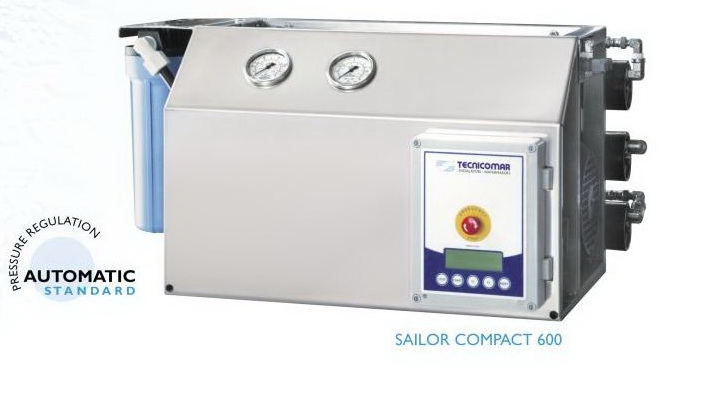

| SAILOR COMPACT 600 | 100 / 26,4 | 2,400 / 634 | 230V c.a. - SO Hz monofase*- 1.8 KW | 75 | 52 | 36 | 55 |
| SAILOR COMPACT 1000 | 160 / 42.3 | 3,840 / 1,015 | 230V c.a.- 50 Hz monofase*- 1.8 KW | 1I7 | 52 | 36 | 64 |
| SAILOR COMPACT 1500 | 220 / 58 | 5,280 / 1,392 | 230V c.a.- 50 Hz monofase*- 1.8 KW | 1I7 | 52 | 36 | 68 |
| SAILOR COMPACT 2000 | 300 / 79,2 | 7,200 / 1,900 | 230V c.a.- 50 Hz monofase*- 2.2 KW | 117 | 52 | 44 | 78 |
Tecnicomar is an Italian manufacturer of desalination equipment, which is actively used in the conditions of sea travel. Fresh water is the most important thing needed for a comfortable stay of passengers and crew on the ship.
Tekhnikomar desalination plants will satisfy the requirements of even the most demanding seafarers. These are reliable, compact, easy to manage and maintain, high-performance reverse osmosis systems, which it seems possible to use on vessels of any type with a different range of the route.
History reference
The Tecnicomar brand was founded in the late 70s of the twentieth century for the design and manufacture of desalters for reverse osmosis for individual, industrial and marine purposes. Guided by market trends and applying progressive developments, the manufacturer has achieved tremendous success and has received worldwide recognition.
Nothing has changed so far: the use of high-quality materials and technological components are the factors that guarantee the success of Technicomar. Under this brand a large number of seawater desalters are produced, which are presented in several series.
The SBS company cooperates with the Italian trademark Tecnicomar, and therefore proposes to buy sea water desalination equipment at affordable prices and in the widest range.
Reverse Osmosis Technology
The principle of the device is quite simple: water passes under pressure through special membranes. Membranes are made from materials of unique properties - cellulose or polyamide. In the structure of the membrane there are special micropores that pass through water molecules, but retain larger particles of salt and impurities.
Water maker constructively consists of a set of tubes that are placed relative to each other in a parallel manner. Pipes in desalination plants are made of the same materials as the membrane itself. That is, they have a porous structure.
Sea water is supplied by a pump, and desalted, suitable for use, and salt concentrate, which is sent to the effluent, are discharged in two ways.
Why us?
The SBS virtual catalogs contain descalers of Tekhnikomar of various models: with different capacities per hour and per day, installation capacity, various overall dimensions, weight and some other technical and operational characteristics.
Would you like to buy a watermaker or get detailed information?
For specification of parametres address to our experts or fill the form
INTERNATIONAL STANDARDS OF QUALITY
WORK WITH ALL TYPES OF SHIPS
FULL TECHNICAL DOCUMENTATION
WARRANTY AND POST-WARRANTY SERVICE
