PALFINGER PTM

brand of crane	bearing capacity	boom	drawing

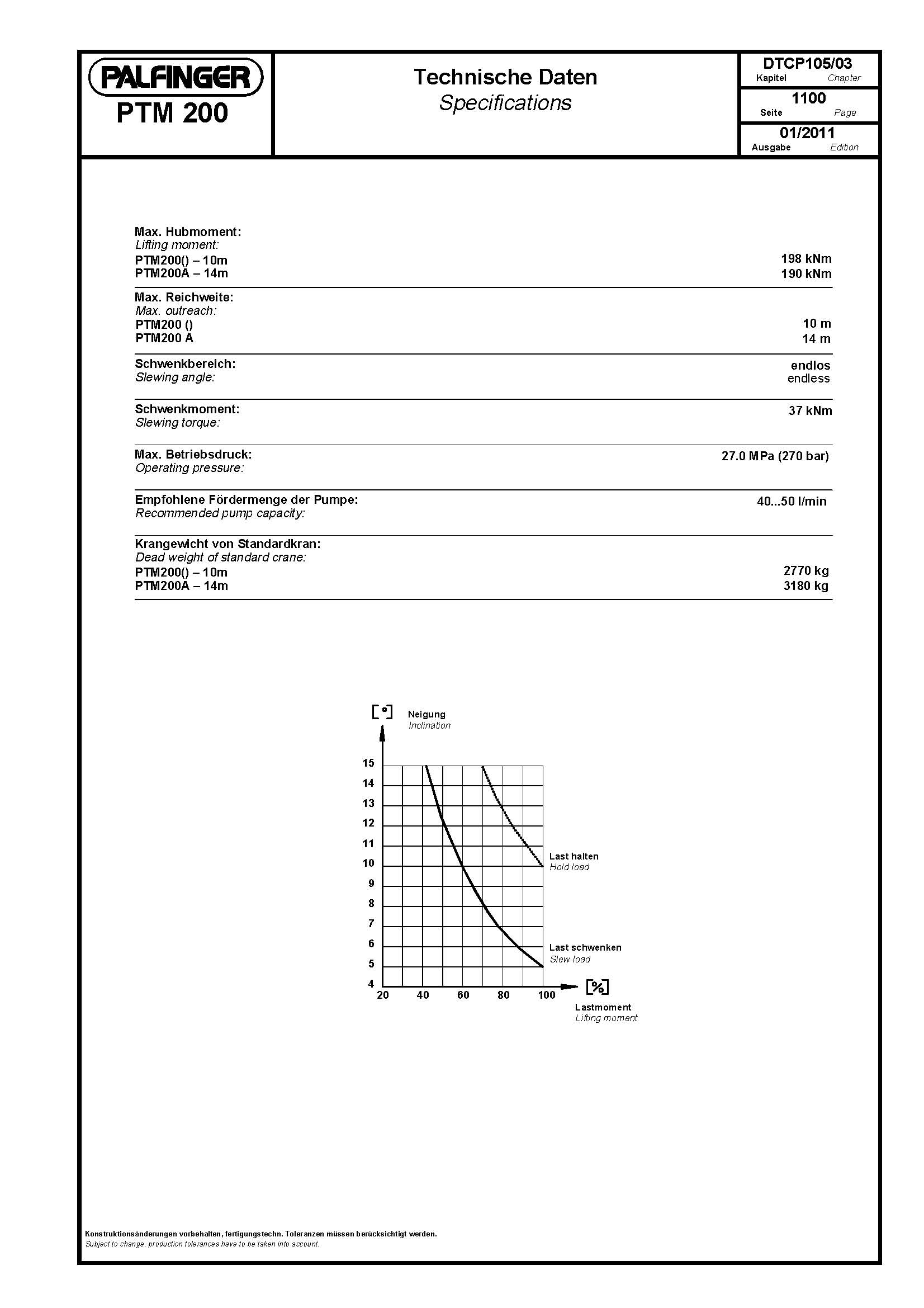

PTM 200	950 kg - 3 300 kg	6 m - 14 m

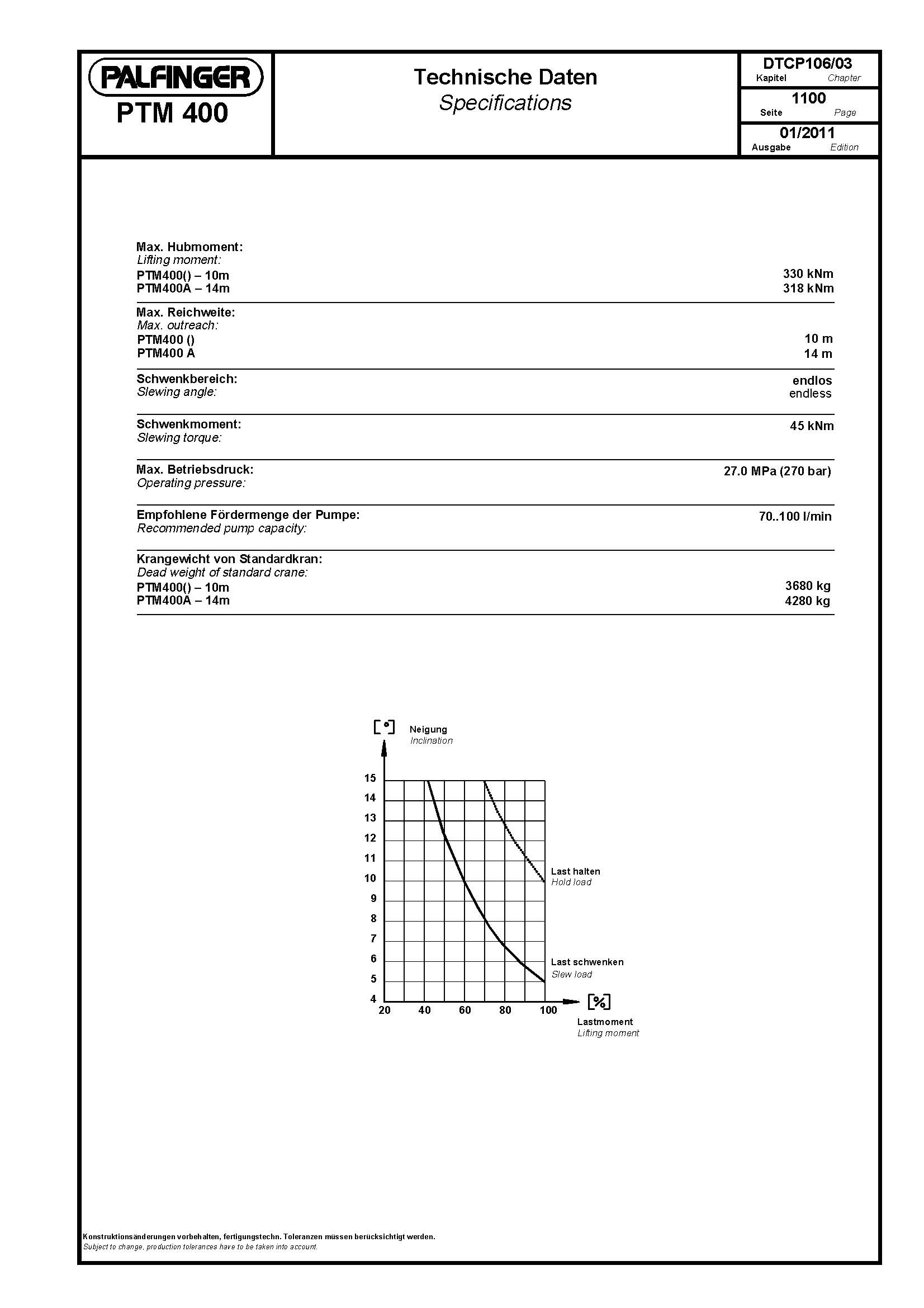

PTM 400	1 800 kg - 5 300 kg	6 m - 14 m

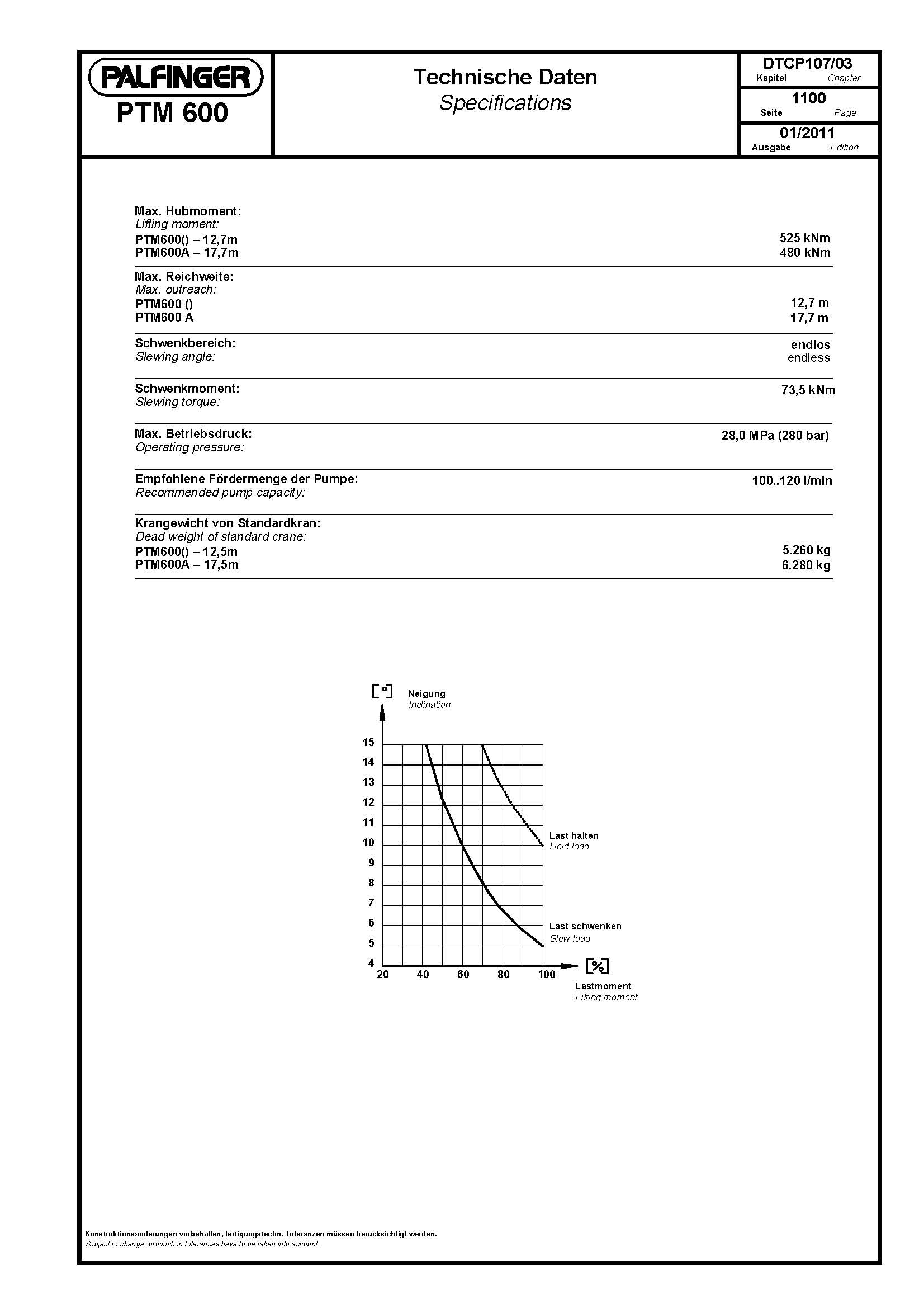

PTM 600	2 200 kg - 7 700 kg	6 m - 17 m

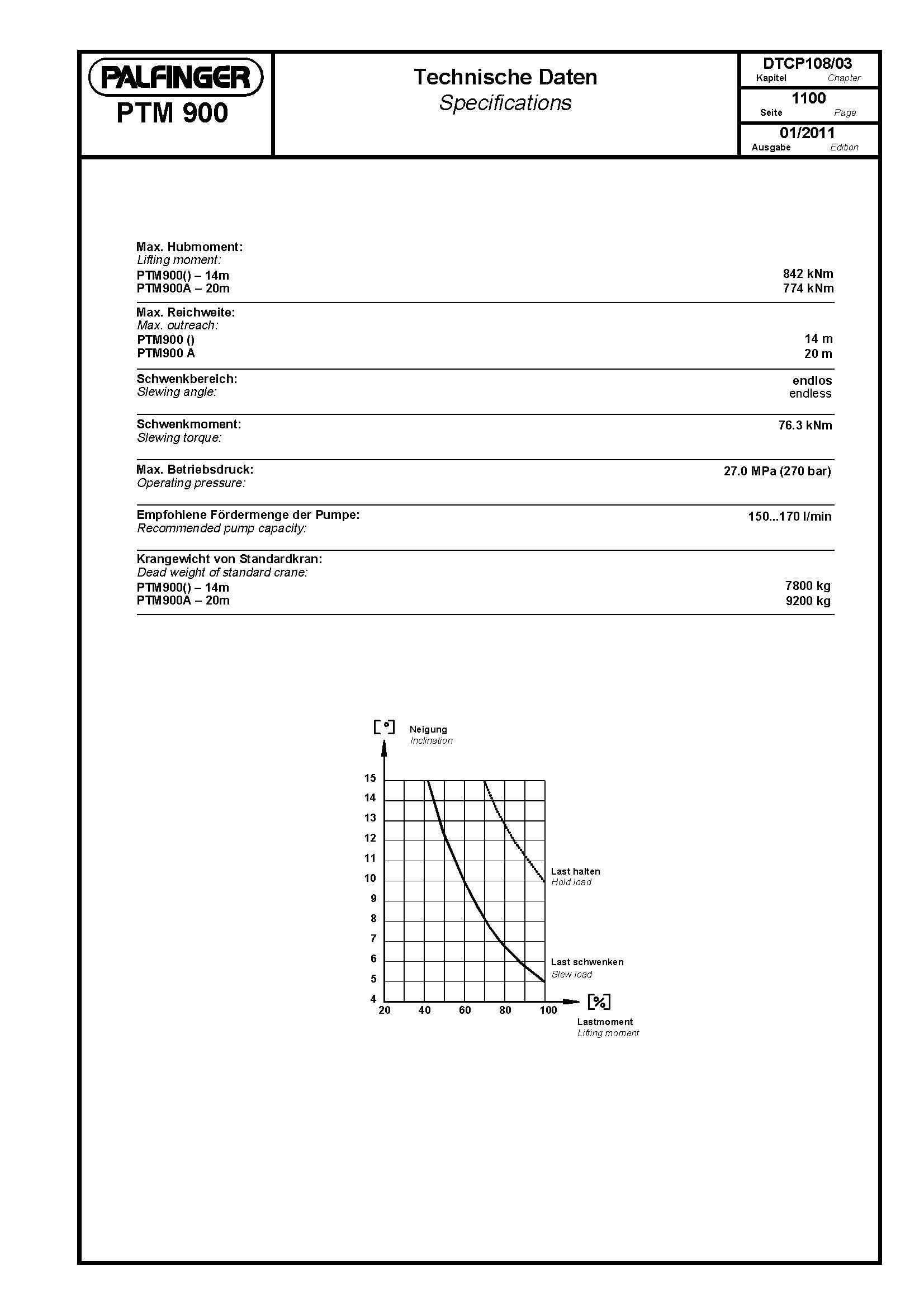

PTM 900	2 700 kg - 10 000 kg	6 m - 20 m

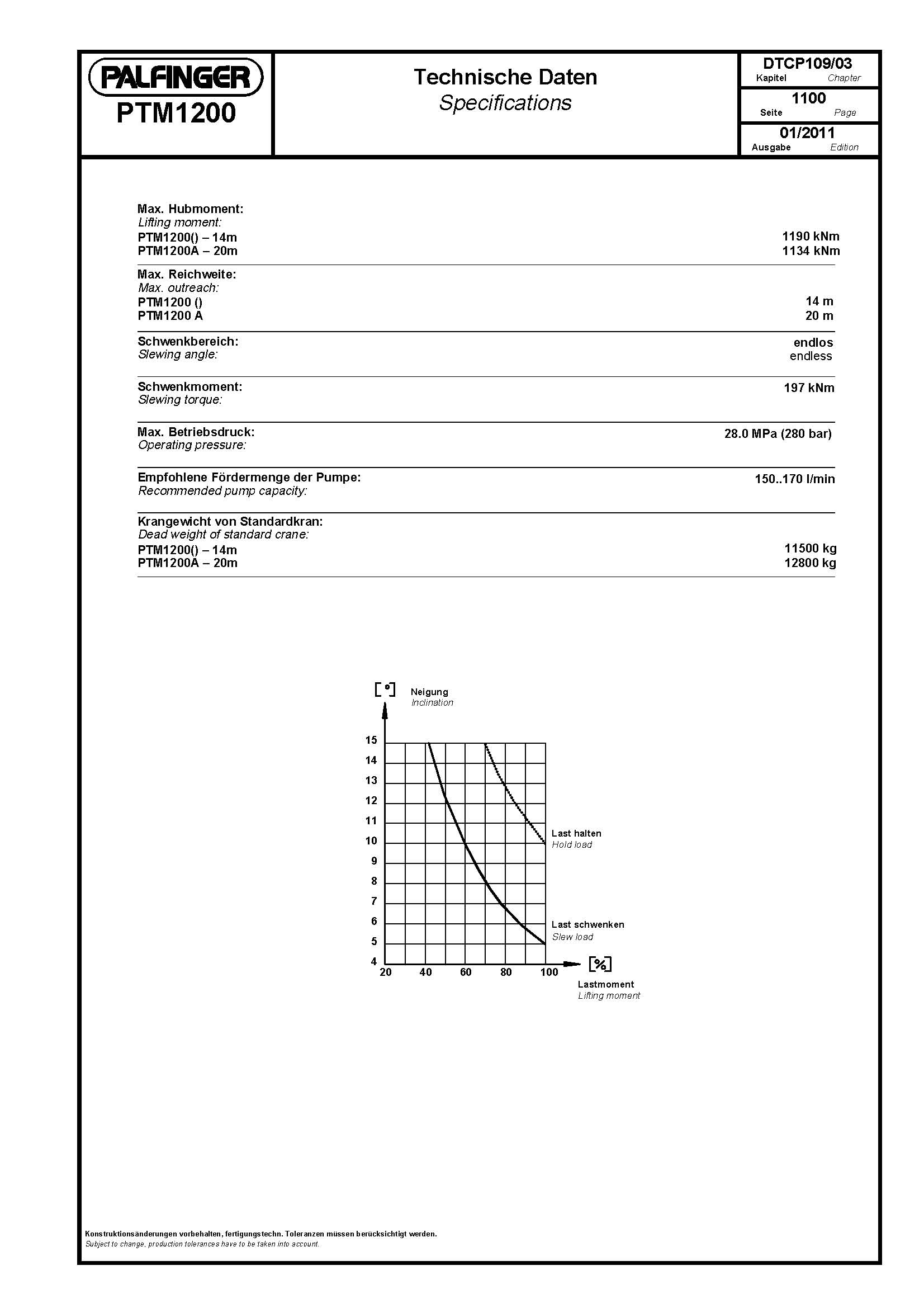

PTM 1200	3 900 kg - 12 000 kg	6 m - 20 m

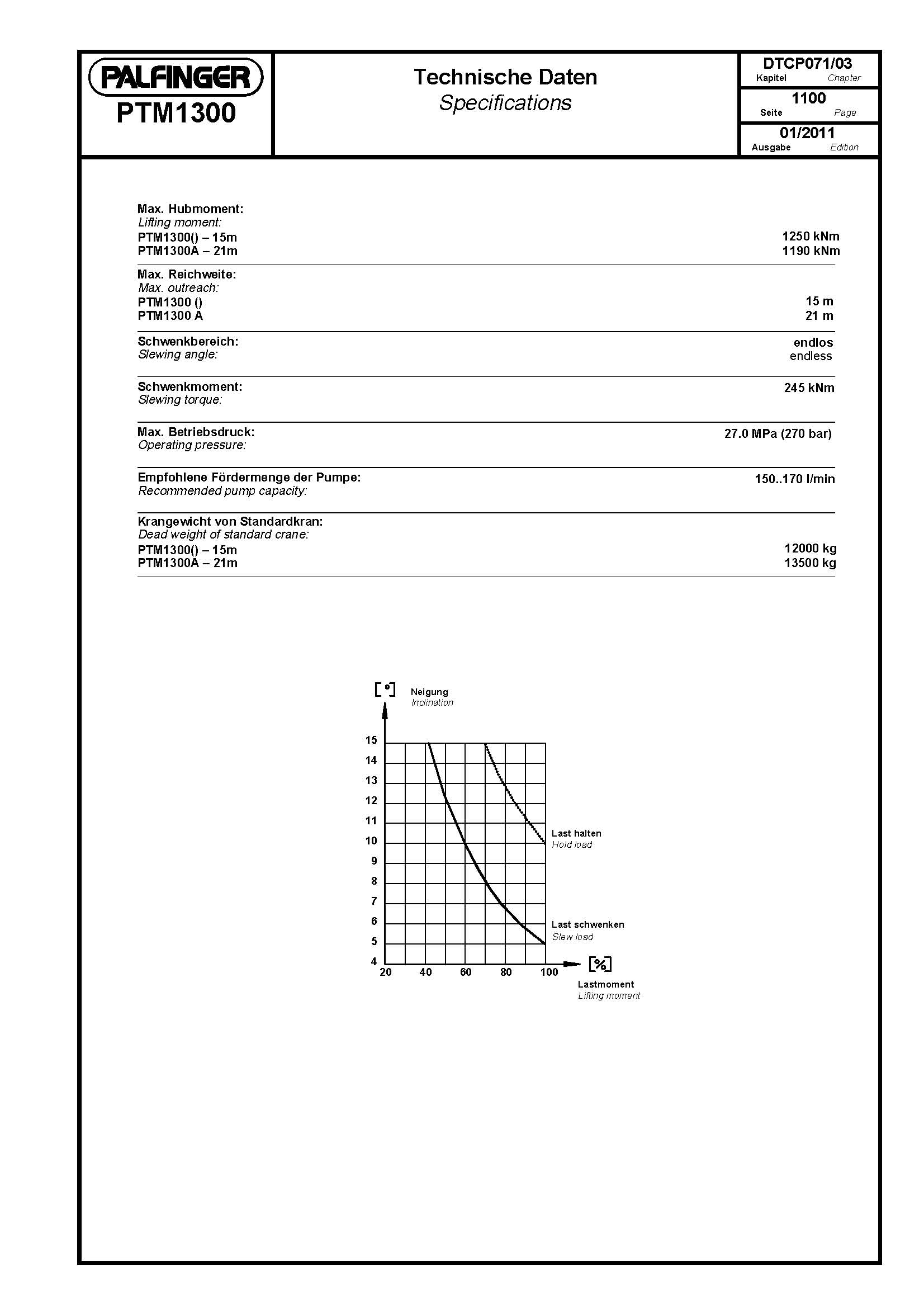

PTM 1300

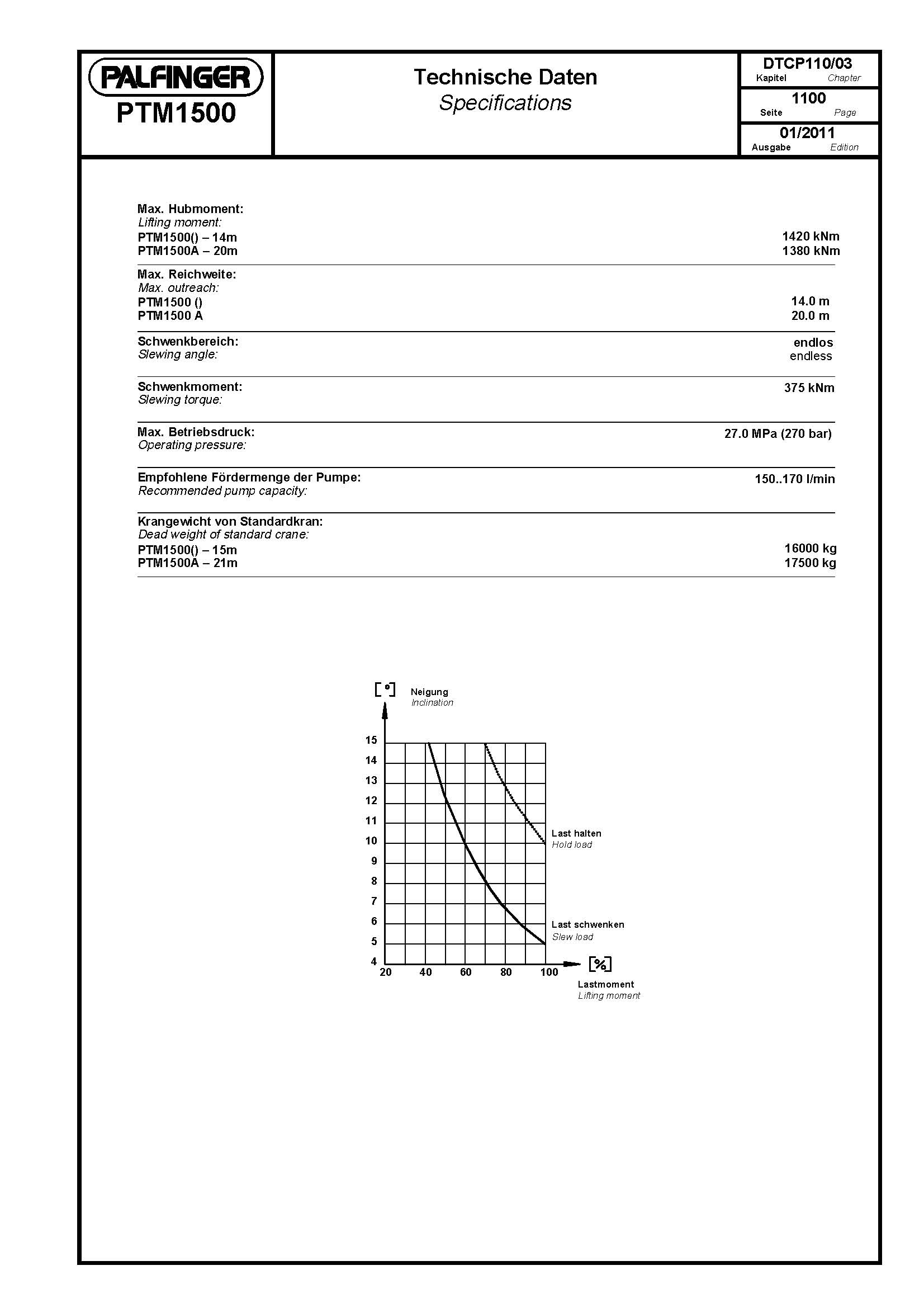

PTM 1500	5 500 kg - 15 000 kg	6 m - 20 m

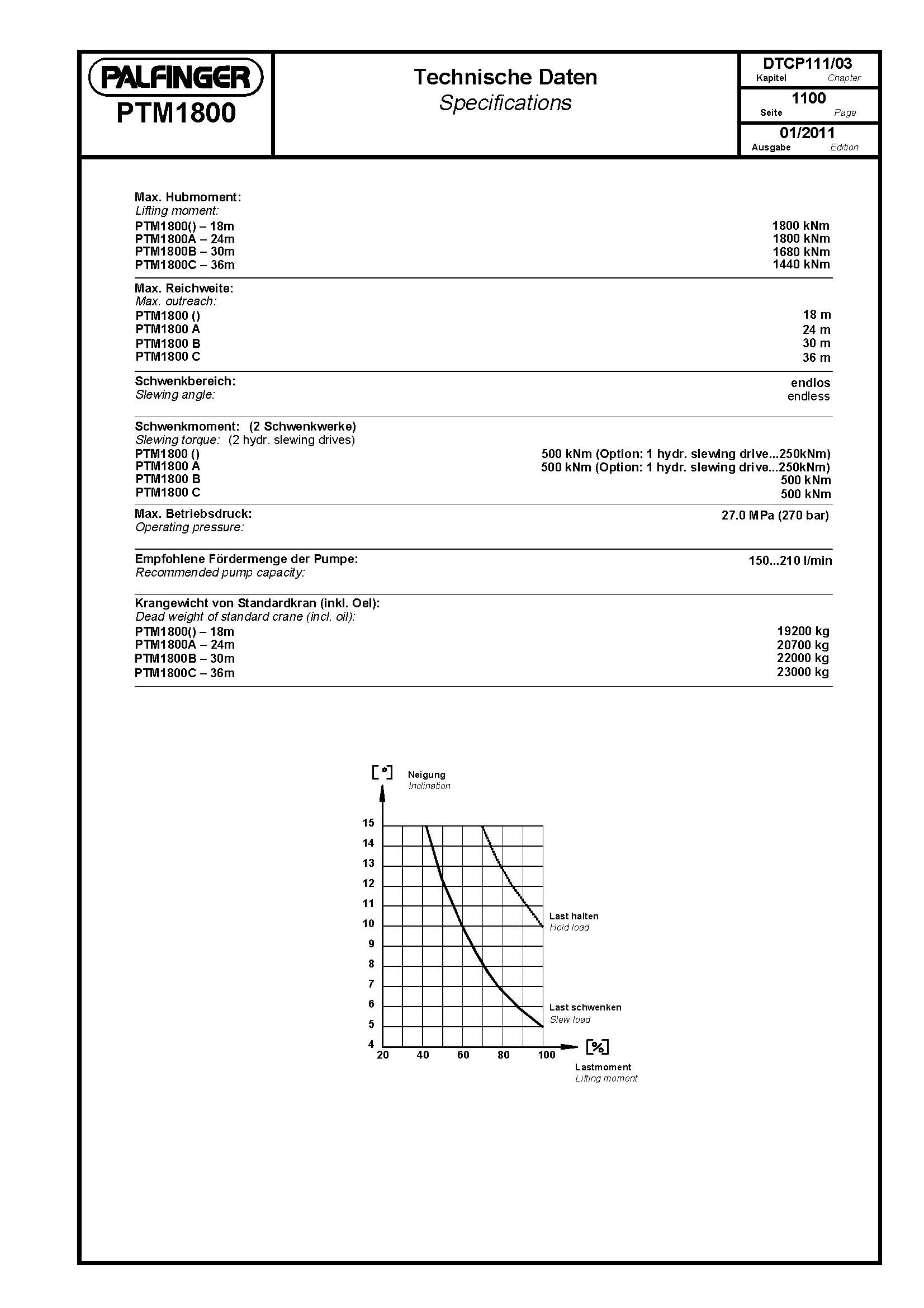

PTM 1800	1 800 kg - 15 000 kg	6 m - 36 m

PALFINGER PTM cranes: telescopic boom power for marine & wind energy

PALFINGER has developed unique crane-manipulators for marine and wind turbine applications: telescopic boom cranes. These compact systems feature an optimized design with a telescopic boom and lifting hydraulic cylinder in their transport configuration.

Technical specifications of Palfinger PTM crane-manipulators

• 36-Meter maximum reach: Industry-leading boom extension capability.
• Low weight: significantly reduced structural mass.
• Operator-friendly: intuitive controls with remote operation option.
• Simple & robust design: reduced complexity for maximum reliability.
• Enhanced safety: secure loading/unloading operations.
• Customizable options: auxiliary winches, pump station dampers, and more – tailored to client specifications.
• Universal application: suitable for all vessel types, wind farms, platforms, docks, ports, and specialized operations.
• All-weather performance: reliable operation in any sea state and extreme conditions.
• Advanced corrosion protection: extended service life in harsh environments.
• Integrated overload protection: built-in safety system.

PALFINGER PTM cranes deliver the optimal solution for handling oversized and heavy-lift cargo of all specifications.

Key advantages include:

• Optional anti-collision systems
• Overload protection (consistent with spec above)
• Remote-control operation
• Pump station dampers, auxiliary winches, and external control systems

SBS PTM solutions

SBS supplies PTM crane-manipulators with lifting capacities up to 15 tonnes (15,000 kg) and boom reaches up to 36 meters. These systems are ideal for all vessel types – including the largest – requiring heavy and oversized cargo handling capabilities.
