PALFINGER PKM

Four-section boom allows you to work on large departures, excellent cargo-height characteristics make it possible to work with large-weight loads.



brand of crane	bearing capacity	boom	drawing

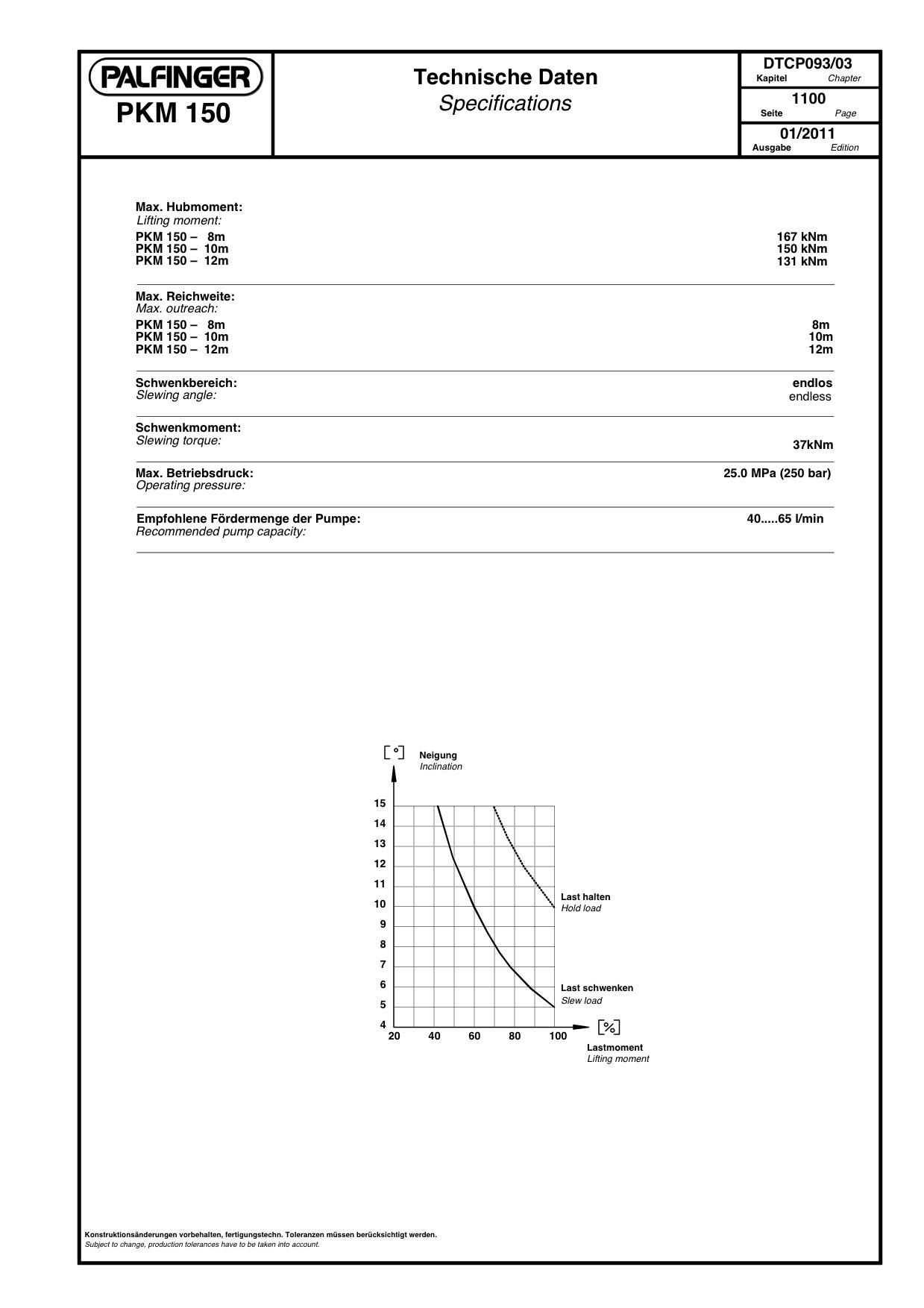

PKM 150	1 100 kg - 2 100 kg	8 m - 12 m

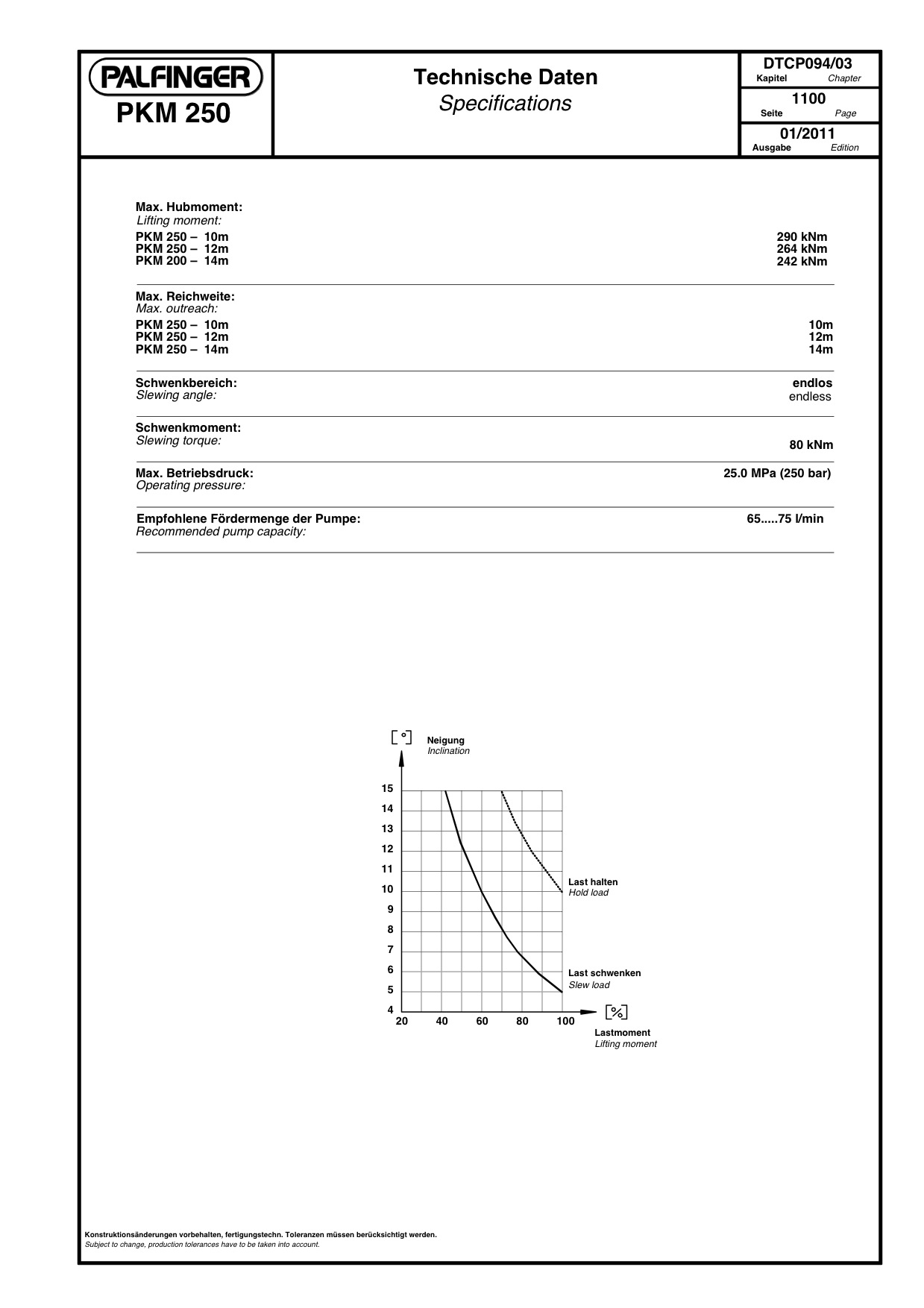

PKM 250	1 750 kg - 2 900 kg	10 m - 14 m
PKM 350	2 300 kg - 3 600 kg	12 m - 16 m

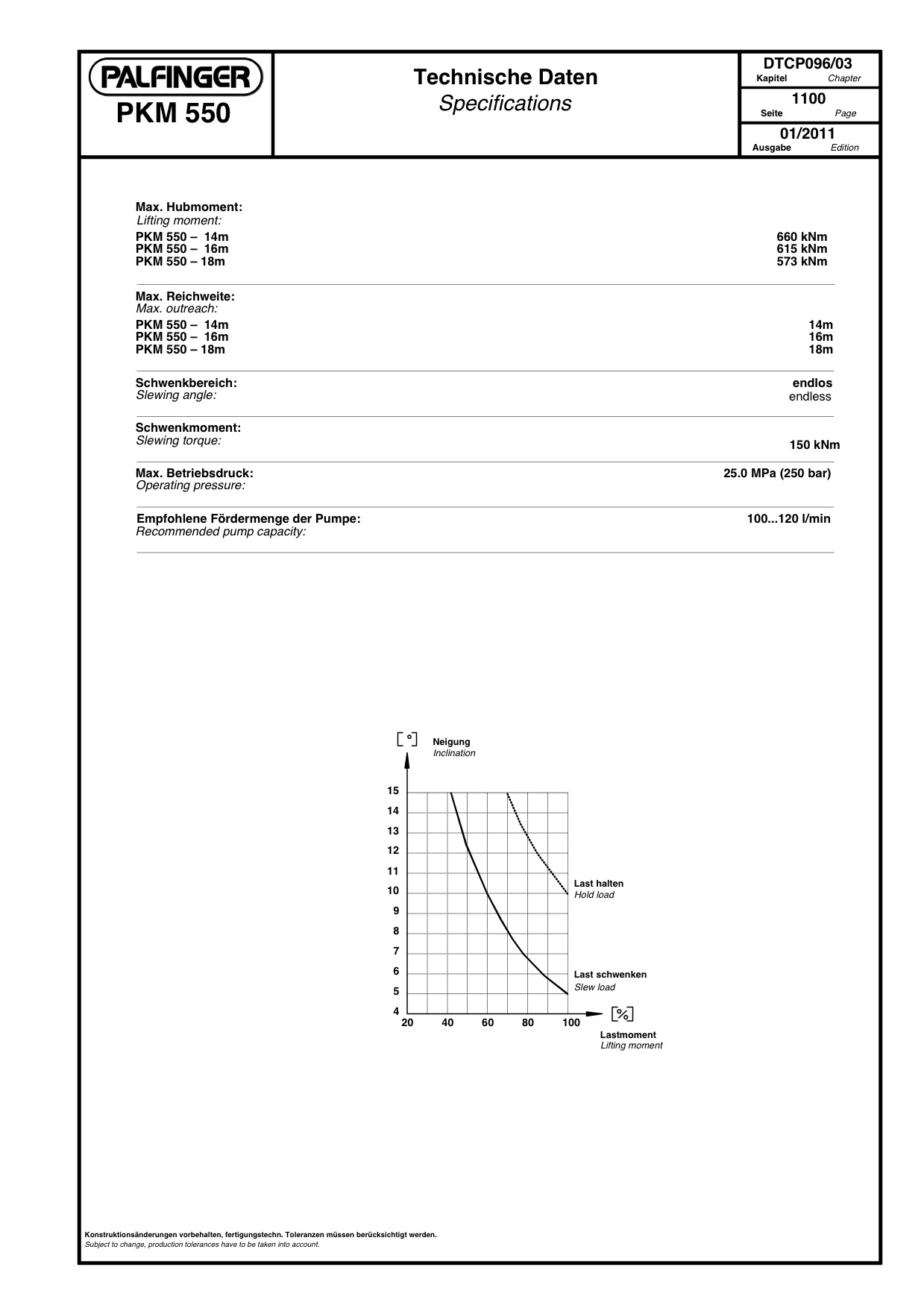

PKM 550	3 299 kg - 4 700 kg	14 m - 18 m

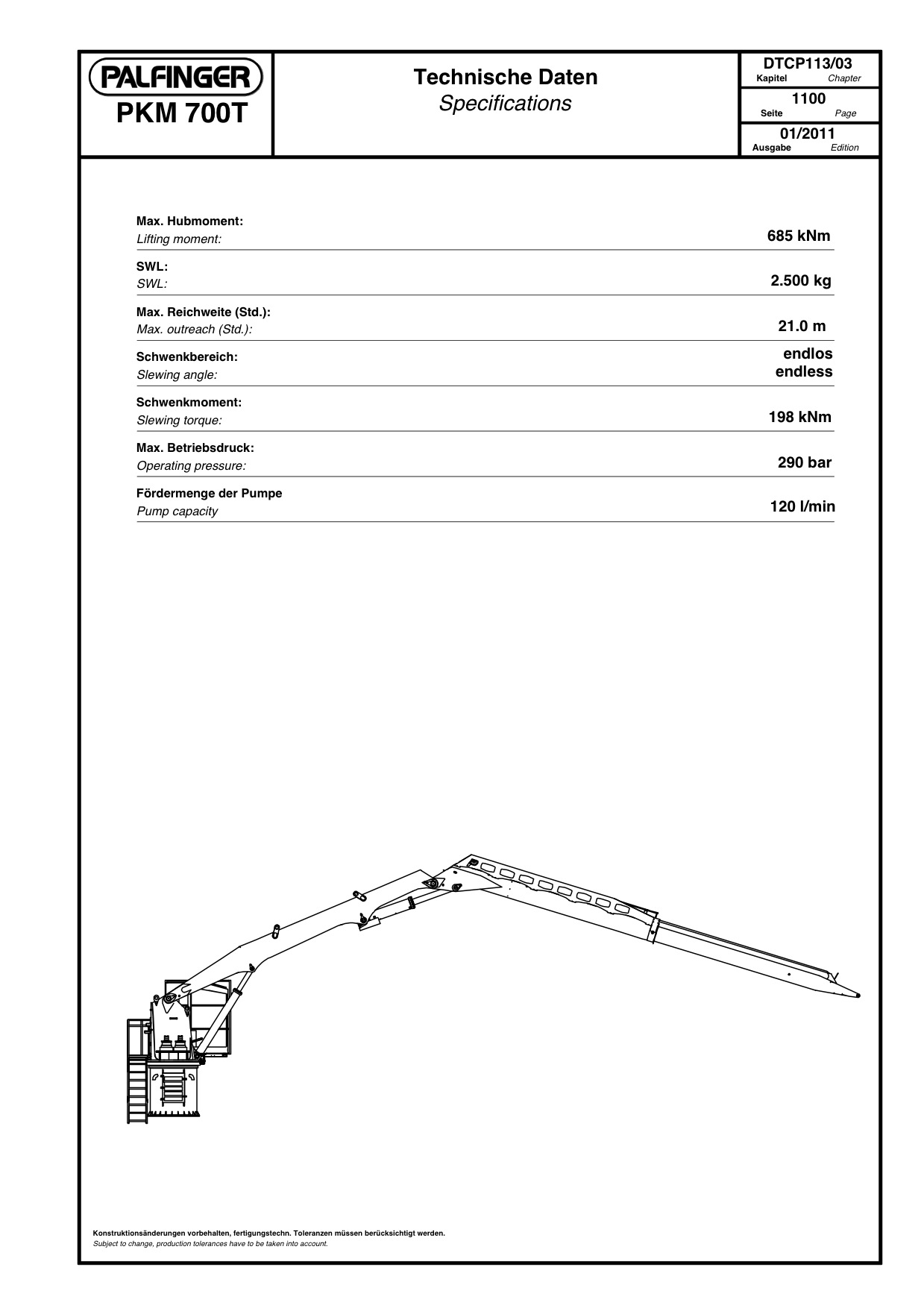

PKM 700t	2 500 kg - 5 635 kg	18 m - 21 m

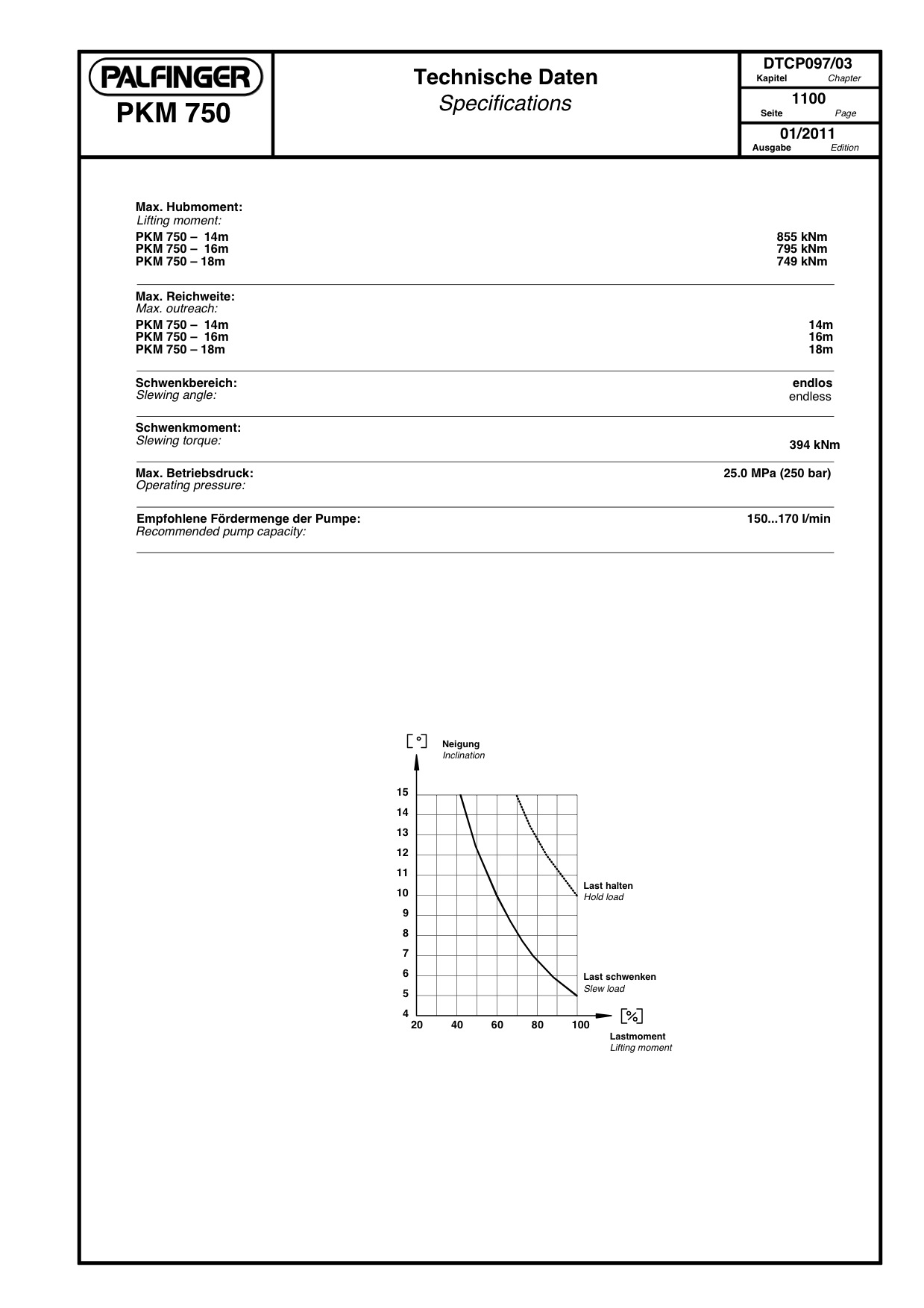

PKM 750	4 150 kg - 6 100 kg	14 m - 18 m

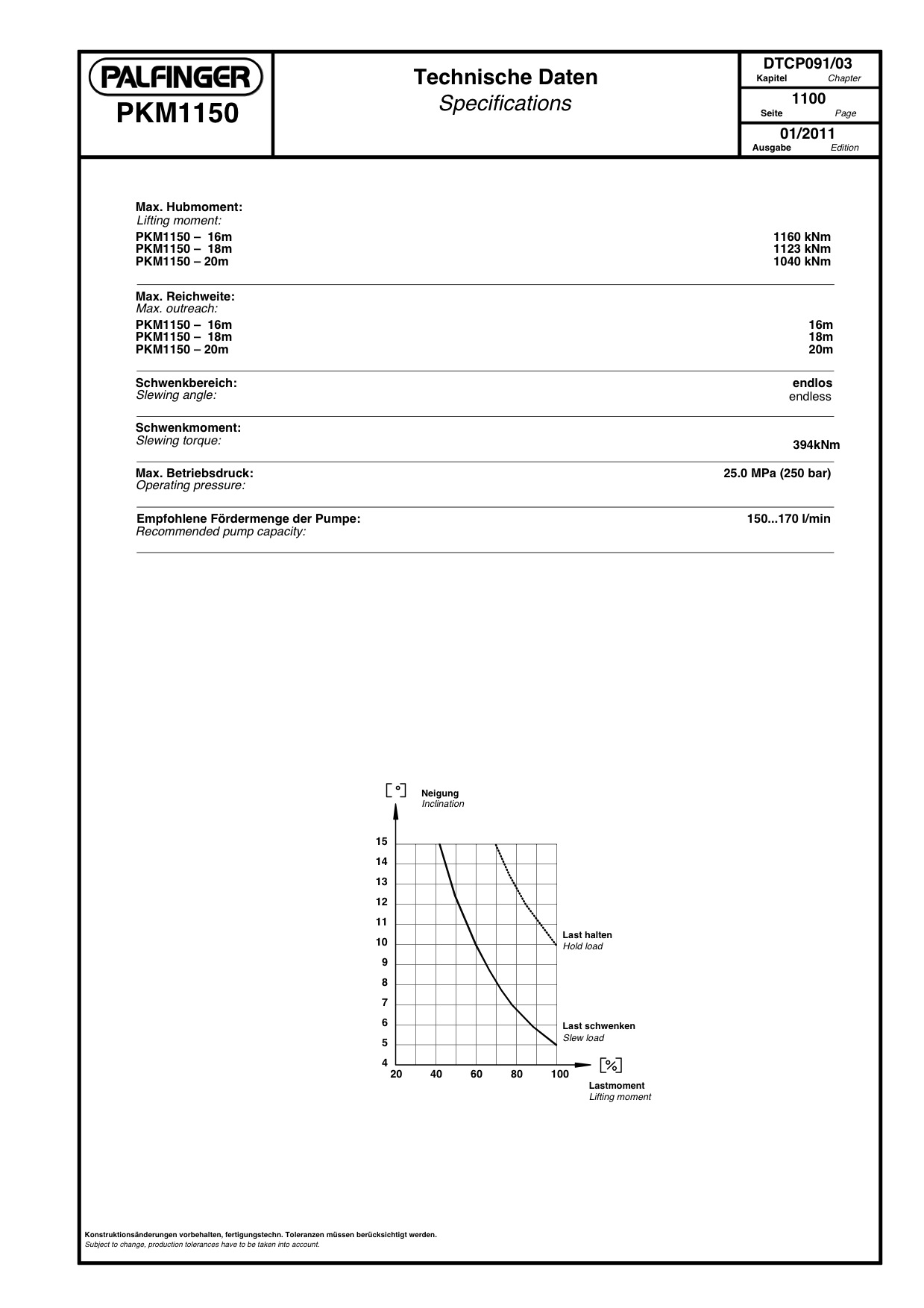

PKM 1150	5 200 kg - 7 250 kg	16 m - 20 m

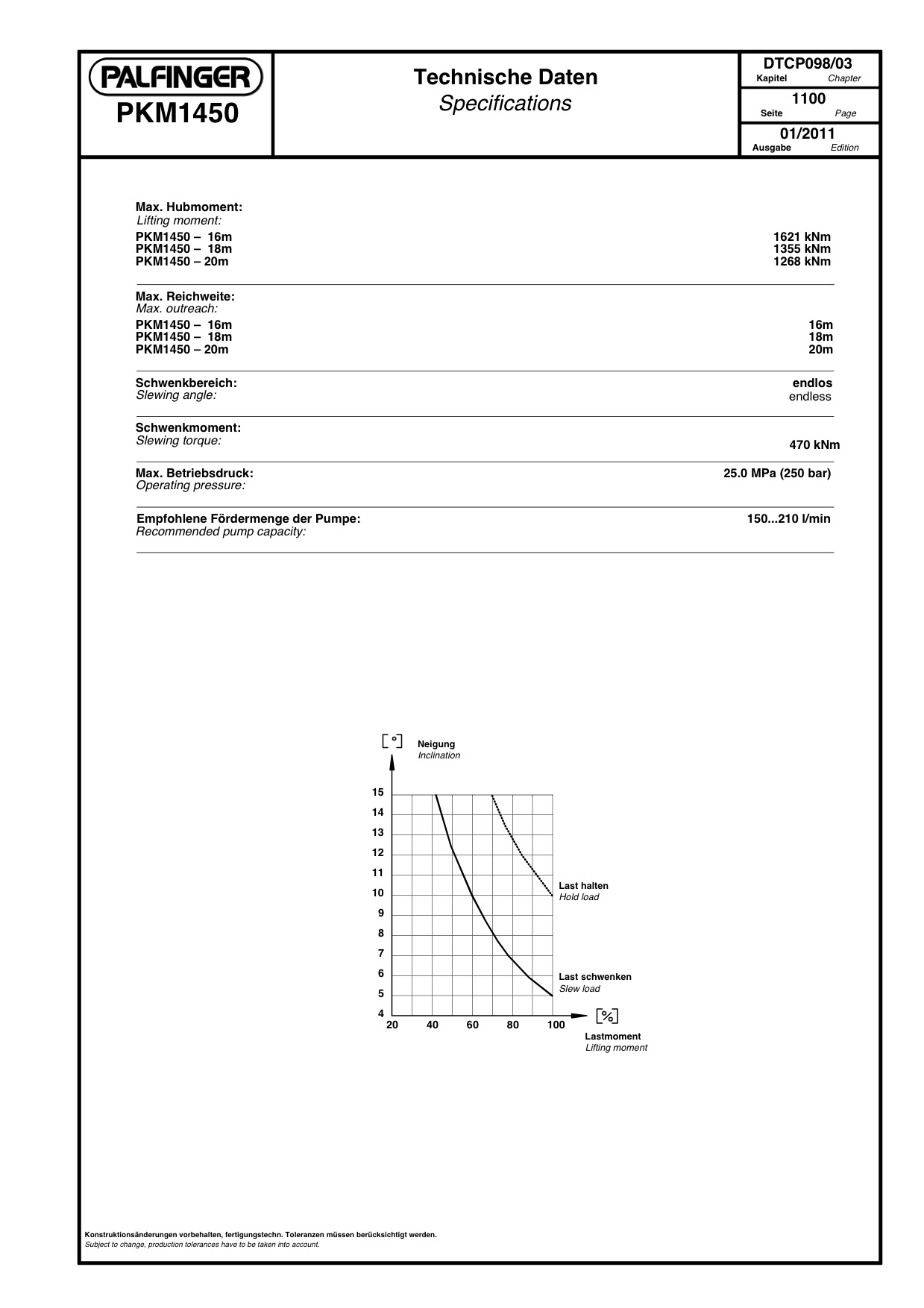

PKM 1450	6 350 kg - 9 000 kg	16 m - 20 m

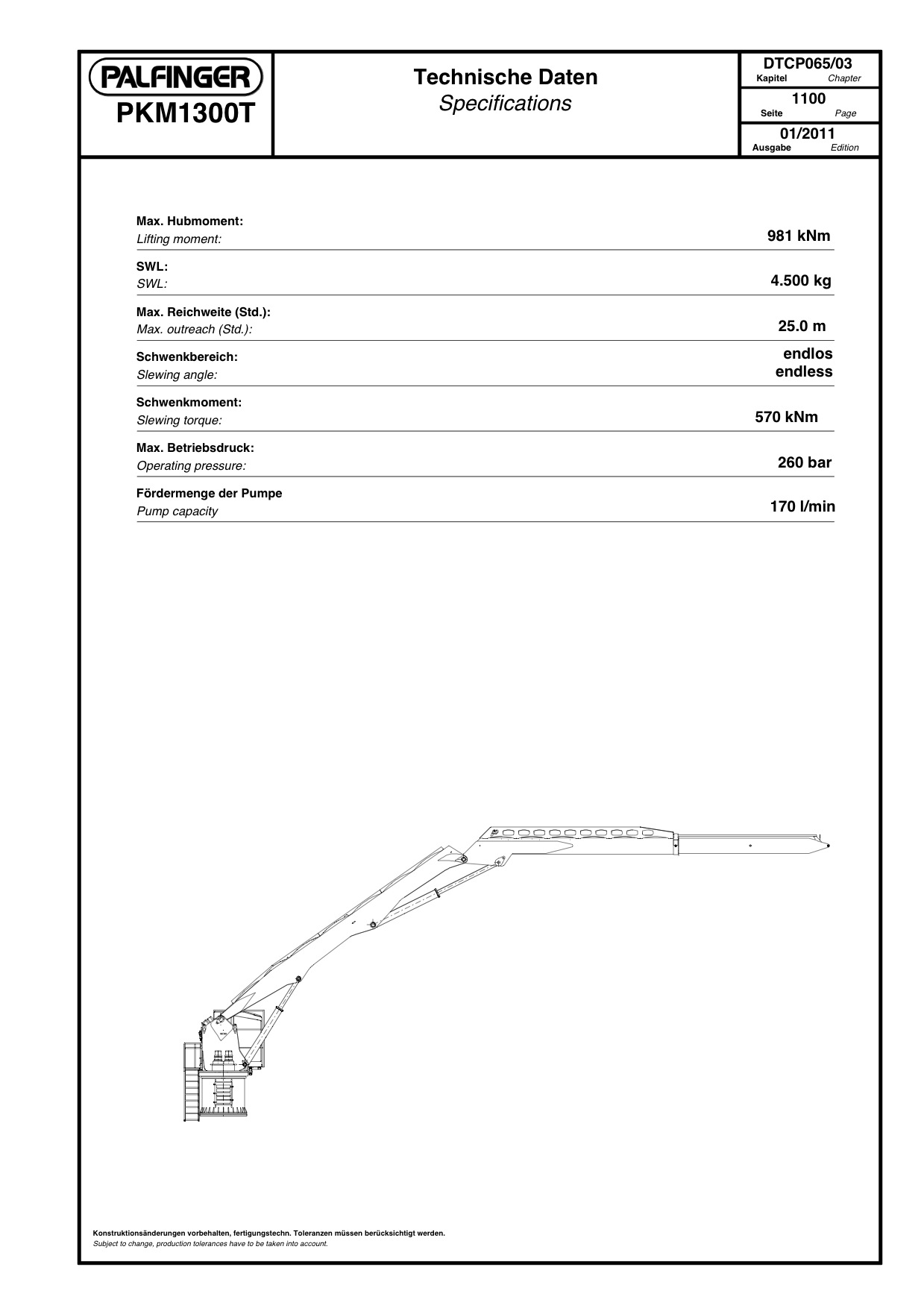

PKM 1300t	4 500 kg - 9 750 kg	25 m

PALFINGER MARINE PKM series cranes: extended reach for heavy loads

PALFINGER MARINE PKM series cranes feature an extended boom, specifically engineered for lifting oversized and heavy cargo (equipment, containers).

Four-section boom allows you to work on large departures, excellent cargo-height characteristics make it possible to work with large-weight loads.

Technical features of Palfinger PKM crane-manipulators

• Extended operational radius: enables efficient, safe, and rapid vessel loading/unloading in both open seas and port conditions.
• Space-efficient design: minimal footprint in parked position. Combines low weight with high power for versatile loading/unloading operations.
• Enhanced control system: ensures operator comfort and safety during maritime operations, even in rough seas. Ideal for drilling rigs, vessels, and offshore platforms.

Additional capability of Palfinger PKM

PALFINGER MARINE PKM cranes excel in wind energy applications. They perform reliably in all sea states, enabling fast, safe cargo handling for wind turbine maintenance.
