PALFINGER PSM

brand of crane	bearing capacity	boom	drawing

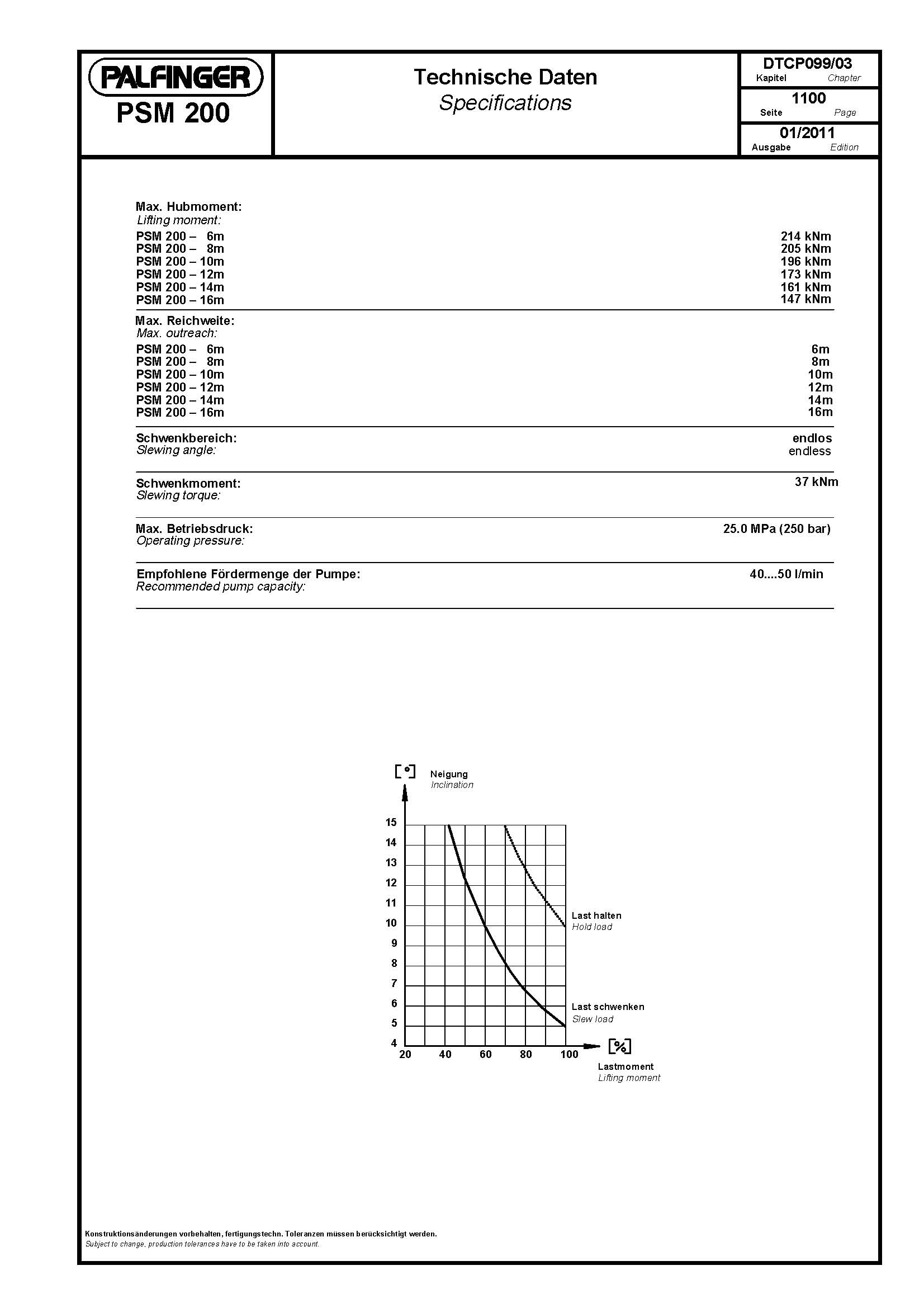

PSM 200	900 kg - 3 500 kg	6 m - 16 м
PSM 400	1 700 kg - 5 600 kg	6 m - 16 m

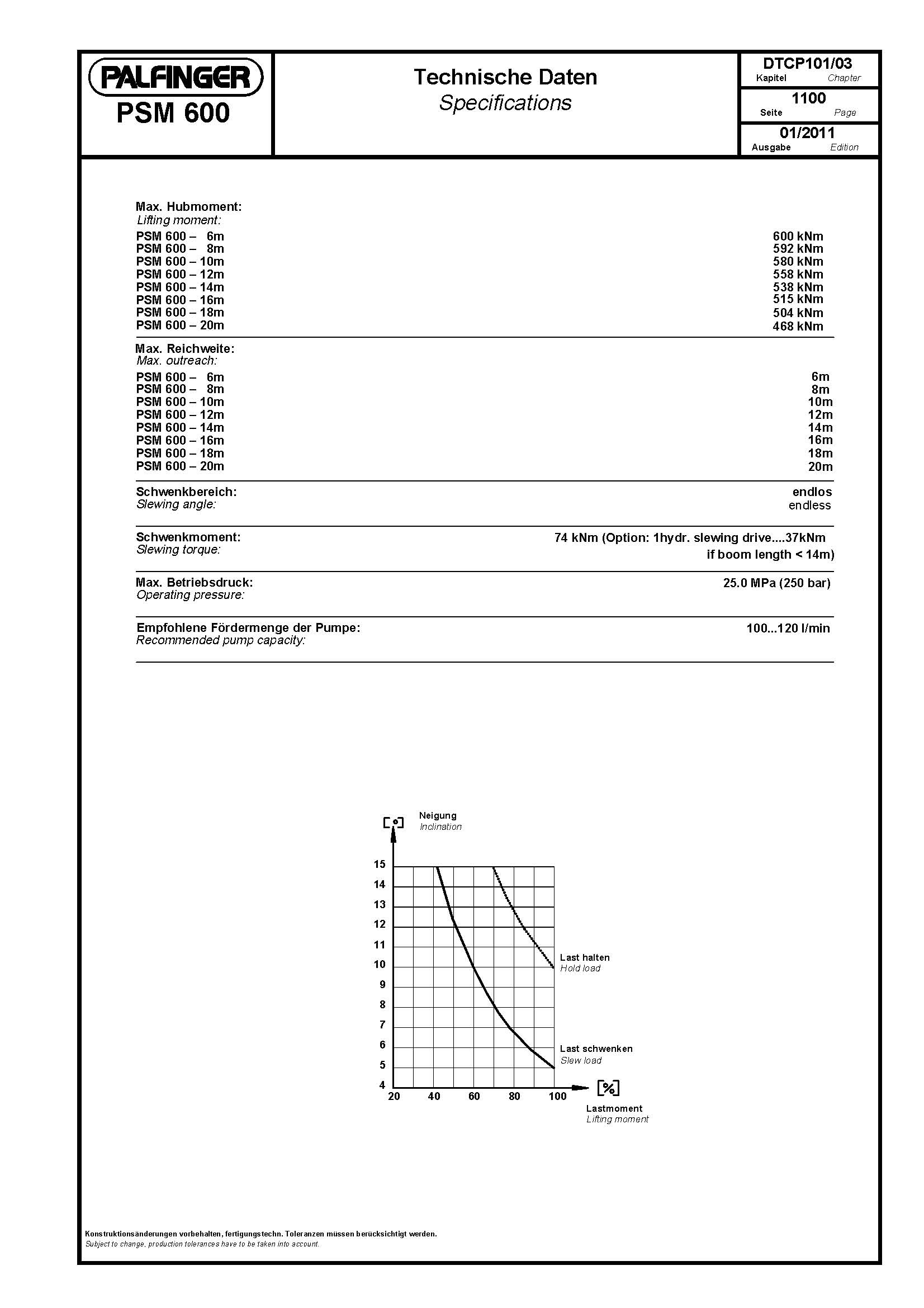

PSM 600	2 300 kg - 10 000 kg	6 m - 20 m
PSM 900	3 200 kg - 14 200 kg	6 m - 20 m

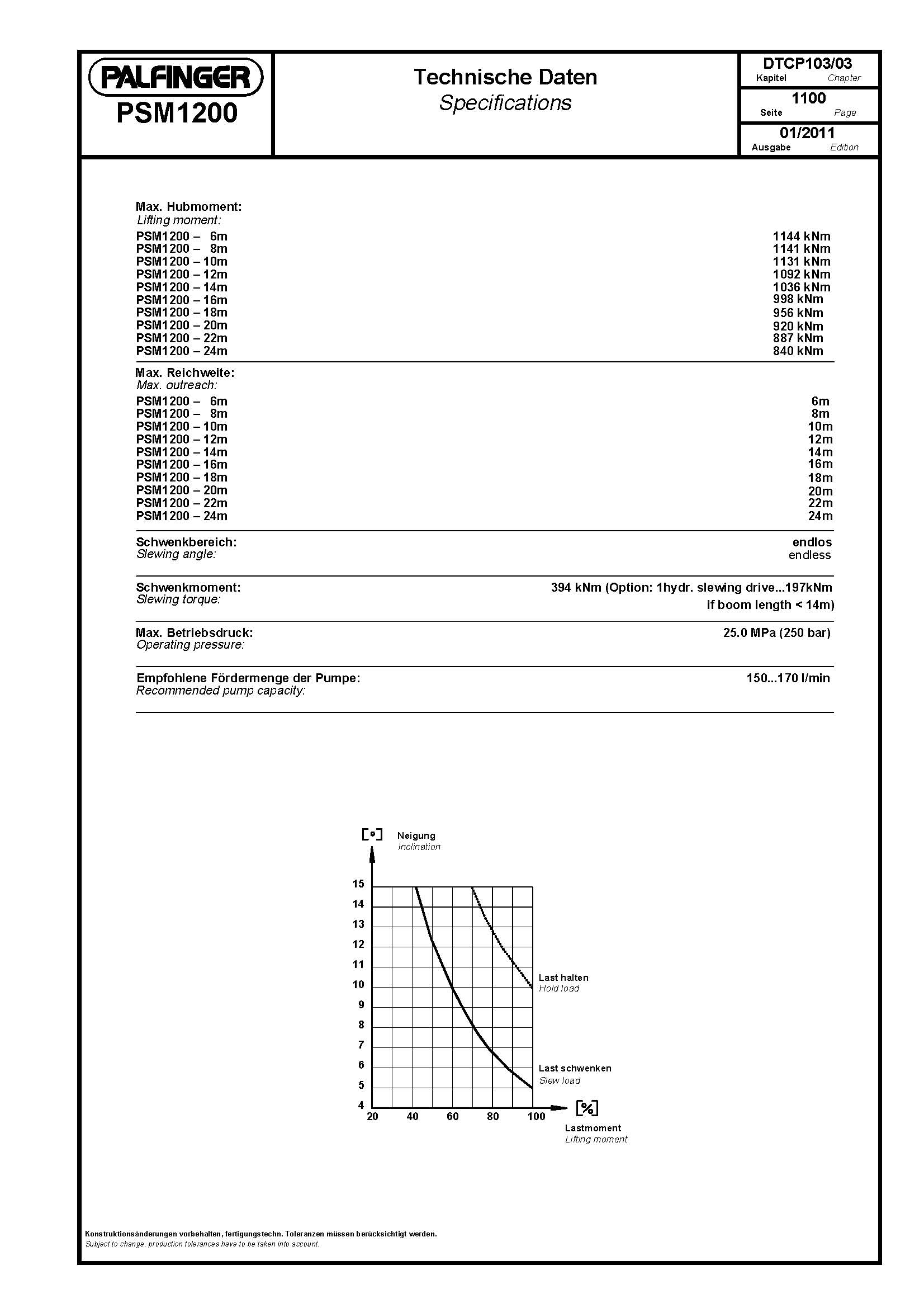

PSM 1200	3 500 kg - 19 000 kg	6 m - 24 m
PSM 1500	4 600 kg - 20 300 kg	7 m - 24 m

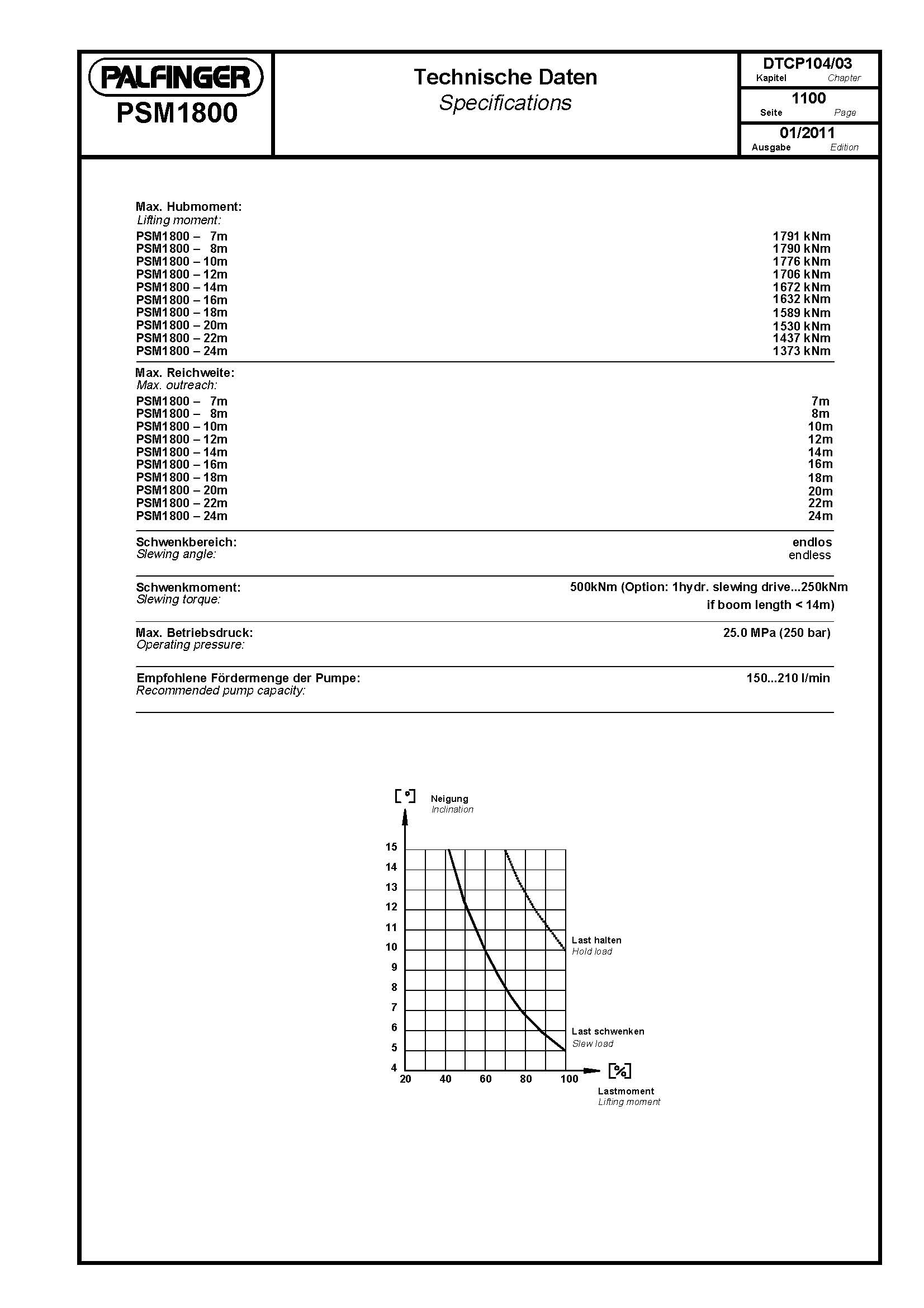

PSM 1800	5 400 kg - 25 600 kg	7 m - 24 m

PALFINGER PSM series cranes: rigid boom reliability for efficient cargo handling

PALFINGER PSM series cranes with rigid booms deliver flawless performance for swift and secure cargo operations. Their design features a slewing column (support) with a boom lift hydraulic cylinder.

Advantages of Palfinger PSM crane-manipulators

• Simplified operation: intuitive controls and minimal training requirements.
• Reduced complexity: streamlined design for enhanced reliability and easier maintenance.
• Optimized weight: lightweight construction without compromising strength.
• Advanced corrosion protection: extended service life in harsh marine environments.
• Full 360° rotation: unrestricted slewing capability for maximum flexibility.
• Versatile applications: customizable options for diverse needs, including shipboard cargo/container handling, oil platforms, dock/port operations, and wind turbine maintenance.
• Seaworthy performance: excellent performance in all sea states, including heavy swell.
• Explosion-proof option: available upon customer request (ATEX certification).
• Remote-control operation: optional remote pendant for enhanced safety and visibility.

SBS offers comprehensive PALFINGER PSM solutions

SBS supplies PALFINGER PSM cranes in a wide range – available in any lifting capacity, with varied configurations and customizable operational specifications to meet your exact needs.
